Pioneer Water Tanks XLE30/2 – 34,257 Gallons
The Pioneer XLE30/2 Water Storage Tank is a high-capacity, engineered solution offering 34,257 gallons of usable water storage. Built from corrosion-resistant Zincalume® steel and equipped with the advanced AQUALINER® Fresh antimicrobial liner, this model is part of Pioneer’s XLE Series and includes a complete structural and access system—ideal for fire protection, irrigation, or potable water storage.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$27,040.00
Choose Quantity :
Product Information
Product Details
đź“„ Key Specifications

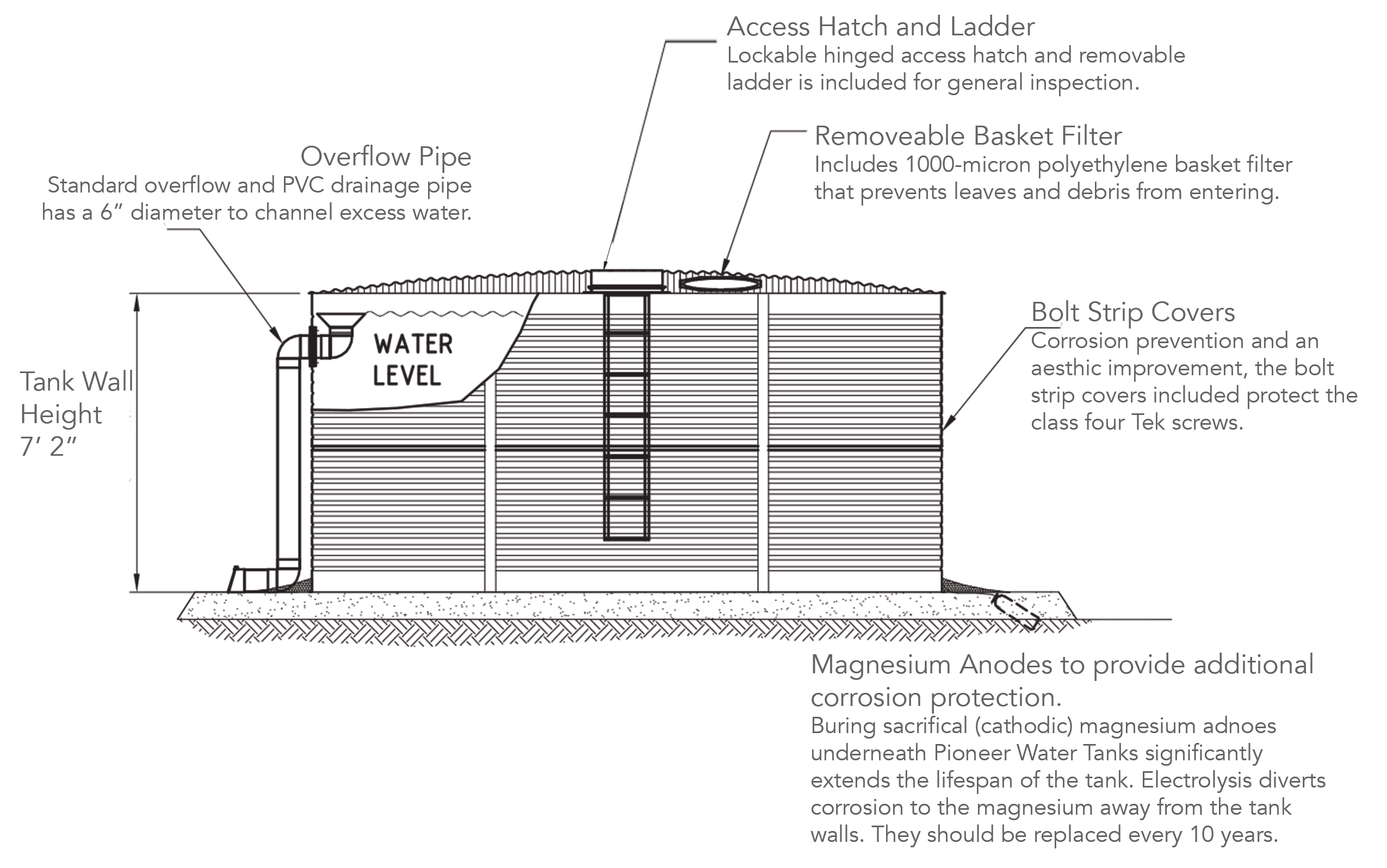

Model: XLE30/2
Nominal Capacity: ~35,000 Gallons
Usable Capacity: 34,257 Gallons
Diameter: 30′ 9″
Height: 7′ 2″
Material: Zincalume® Steel
Liner: AQUALINER® Fresh with Geotextile Underlay
Roof: Includes trusses, roof sheets, and structural hoop system
Overflow: 6″ overflow pipe
Access: Lockable roof access hatch and removable ladder
Anchoring: Bottom hoop and anchors included
Engineering: Includes standard engineering drawings (site-specific stamps quoted separately)
🌿 Features
• Complete commercial-grade tank kit
• Built with durable Zincalume® steel for extended lifespan
• Liner system inhibits bacterial growth and protects water quality
• Includes trusses, roof, anchor system, and all access hardware
• Designed for rapid deployment and engineered performance
🔧 Applications
• Fire protection water storage (NFPA-adaptable)
• Agricultural irrigation and fertigation systems
• Potable water for rural, commercial, or industrial use
• Rainwater harvesting and stormwater retention
đźšš Shipping & Handling
Ships via freight (not included in pricing)
Packaged in labeled skids for on-site assembly
Shipping weight: ~3,500–4,000 lbs
Assembly instructions and engineering documents included
