WST2103 – 28,300 Gallon Corrugated Steel Above‑Ground Water Tank
🛠️ Product Overview
The WST2103 is a rugged above-ground corrugated steel water storage tank designed for long-term use in agricultural, industrial, and fire protection systems. Built with heavy-gauge steel panels and engineered to withstand over 239,000 lbs. when full, this tank delivers reliable capacity with a compact footprint and an eave height of just over 10 feet. Its open-air design and durable construction make it suitable for a wide range of applications including stormwater retention, irrigation, and emergency reserves.
Product Details
.

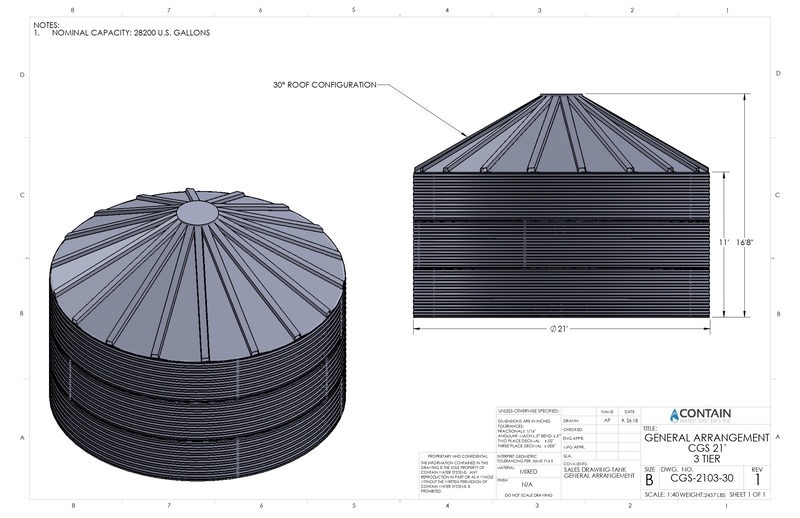

📏 Key Specifications
Model: WST2103
Nominal Capacity: 28,300 gallons
Diameter: 21′ 0″
Eave Height: 10′ 9″
Peak Height: 16′ 11″
Full Load Weight: ~239,000 lbs
Construction: Corrugated galvanized steel
Installation: Above-ground with ring beam or compacted sand pad base
Color: Mill-finish or optional powder-coating available
Use Cases: Agricultural water, fire suppression, stormwater collection
🚚 Shipping & Handling
Packaging: Flat-packed for efficient shipping
Shipping Method: Freight or containerized
Lead Time: 6–8 weeks standard
Installation Time: ~4–6 days with certified crew
Installation Requirements: Forklift or crane recommended for unloading
