UP.240V.1P.2HP.MP

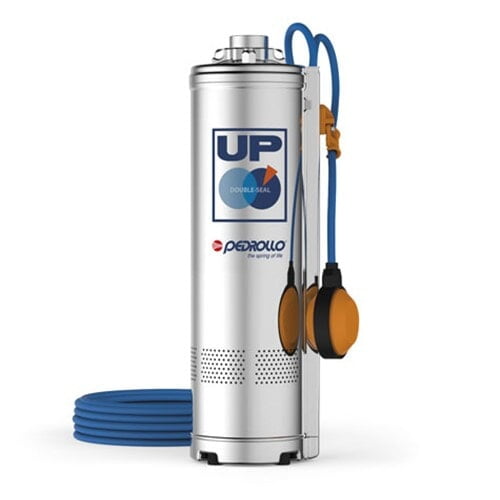

The Pedrollo 1/1 is a durable medium-pressure submersible pump equipped with a float switch for automatic operation. Designed for clean water applications, it’s ideal for domestic pressure boosting, irrigation, and water transfer. Its corrosion-resistant stainless steel body and Noryl™ impellers offer high performance and long service life. The integrated float ensures the pump operates only when needed, preventing dry run damage. Suitable for both vertical and horizontal installation.
Choose Quantity :
Product Information
Product Details
? Key Specifications
- Model: UP.240V.1P.2HP.MP
- Power Supply: 230V, Single-phase
- Motor Power: 2.0 HP
- Current Draw: 12.0 Amps

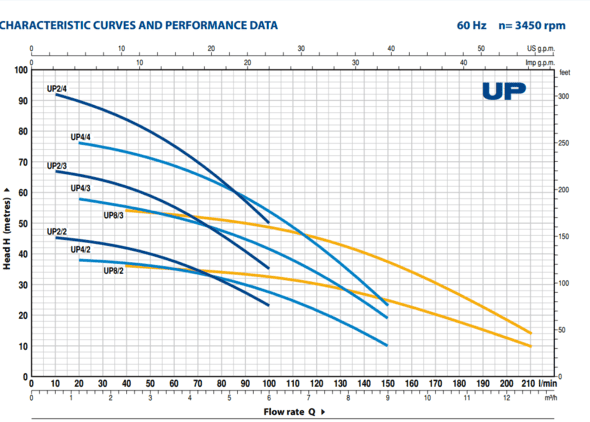

- Maximum Flow Rate: 28 GPM @ 160' TDH
- Shutoff Pressure: 116 PSID
- Minimum Submergence: 3 inches
- Discharge Outlet: 1¼" FPT
- Dry Weight: 36 lbs (16.3 kg)

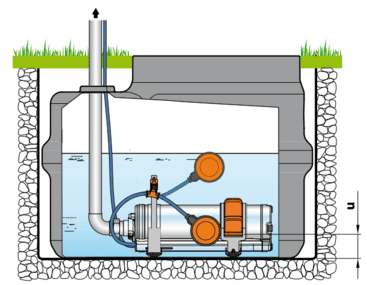

- Orientation: Horizontal or Vertical
- Check Valve: Required (not included)
?️ Standard Inclusions

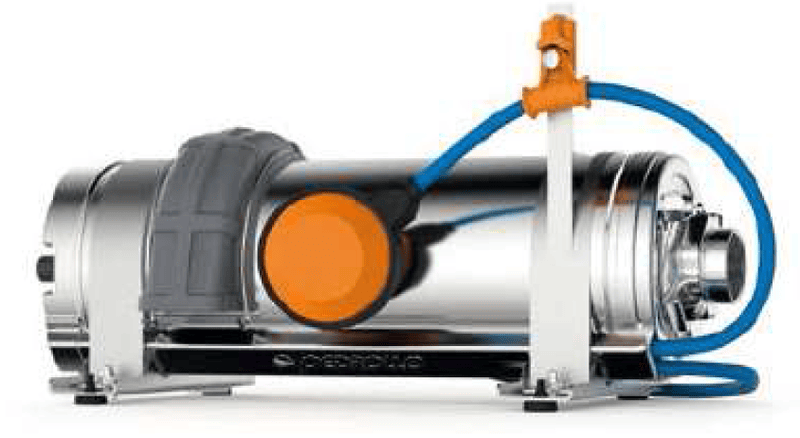

- Horizontal cistern pump unit
- 1¼" FPT discharge connection
- User manual
? Applications Suitable for:
- Cistern water transfer
- Rainwater harvesting systems
- Residential water supply
- Light commercial water systems
? Certifications & Compliance
- Manufactured by Georgia Water Tanks
- Compliant with industry standards for cistern pumps
? Shipping & Handling
- Shipping Dimensions: Not specified
- Shipping Weight: Approximately 36 lbs (16.3 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
