Pioneer 2602 Water Storage Tank – 16,392 Gallons
The Pioneer 2602 is a 16,392-gallon Zincalume® steel water storage tank equipped with a full XL13/02 kit from PWTA. Designed for residential, commercial, or fire protection use, this tank includes the AQUALINER® Fresh antimicrobial liner, geotextile underlay, 6″ overflow, 2″ bottom outlet with valve, lockable access hatch, removable ladder, sacrificial anodes, basket strainer, and a complete roof system. The hold-down kit ensures structural integrity in wind-prone areas. Engineered for durability and safe potable storage, this tank meets NSF/ANSI-61 and fire protection standards.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$16,920.00
Choose Quantity :
Product Information
Product Details

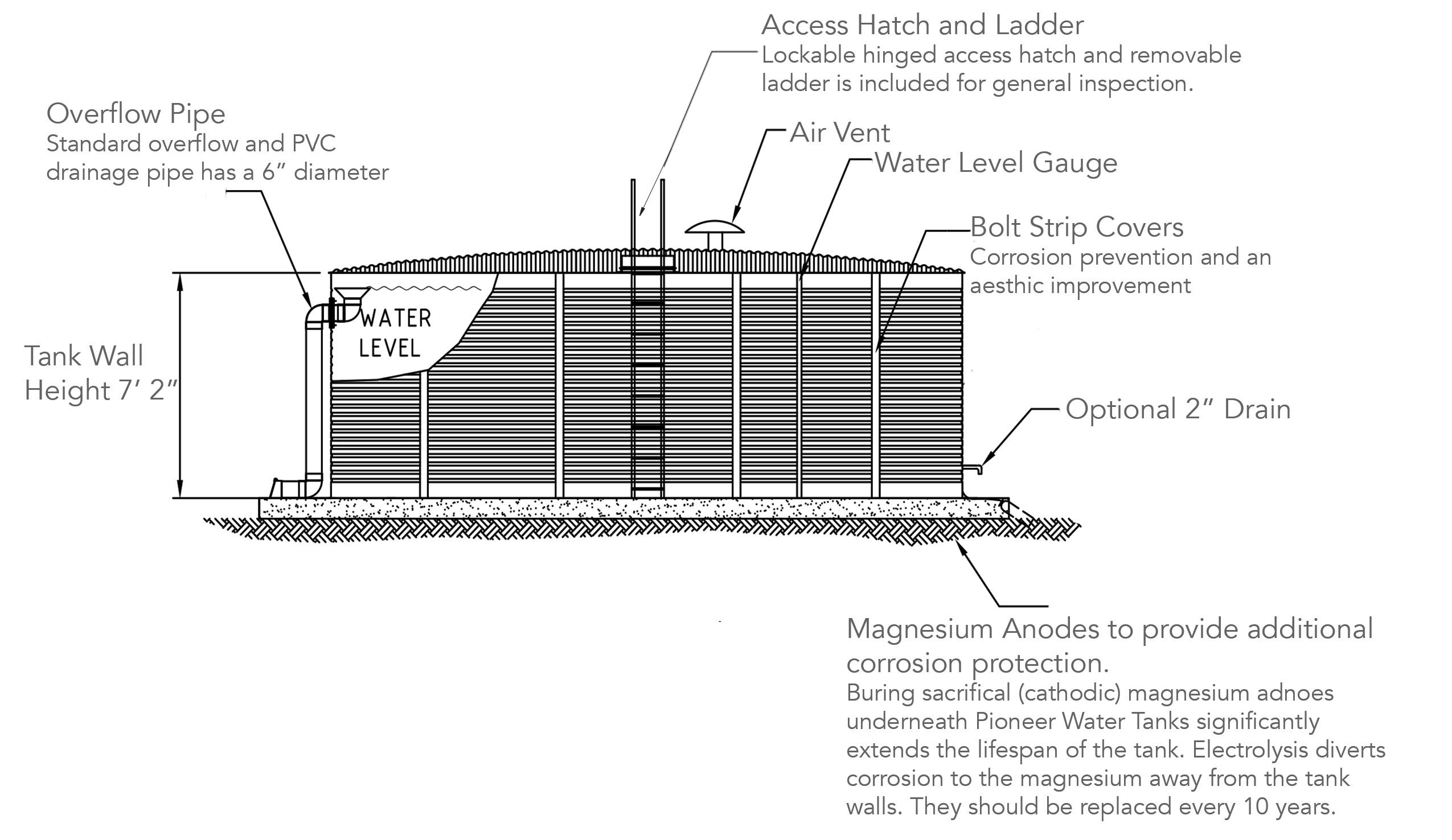

📐 Key Specifications
- Model: 2602
- Capacity: 16,392 gallons (US)
- Diameter: 19′ 9″ (6.02 m)
- Wall Height: 7′ 2″ (2.18 m)
- Material: Zincalume® corrugated steel (Silver)
- Liner: AQUALINER® Fresh with Sanitized® antimicrobial protection
- Underlay: Geotextile protective base layer
- Overflow: 6″ diameter
- Outlet: 2″ bottom outlet with ball valve
- Access: Lockable hatch + removable ladder
- Roof: Full structural roof system
- Corrosion Protection: Sacrificial magnesium anodes
- Extras: Basket inlet filter, XL13/02 kit components, and hold-down hardware
- Certifications: NSF/ANSI-61 potable rated; NFPA-compliant
- Warranty: 20-year conditional warranty
🚚 Shipping & Handling
- Packaging: Complete field-assembly kit
- Delivery: Flatbed freight, site assembly required
- Lead Time: Estimated 10-12 weeks
- Return Policy: Non-returnable confirm tank specs and lead time before ordering
