Pioneer Water Tanks KIT-XLR01/02 – 3249 Gallons
The Pioneer KIT-XLR 01/02 Water Storage Tank is a compact, high-quality solution for small-scale water storage needs. With a 3,249-gallon nominal capacity, this tank features Zincalume® steel construction, an AQUALINER® Fresh antimicrobial liner, and all necessary roof and access components. Ideal for non-permitted installations such as farms, private properties, or off-grid systems.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.

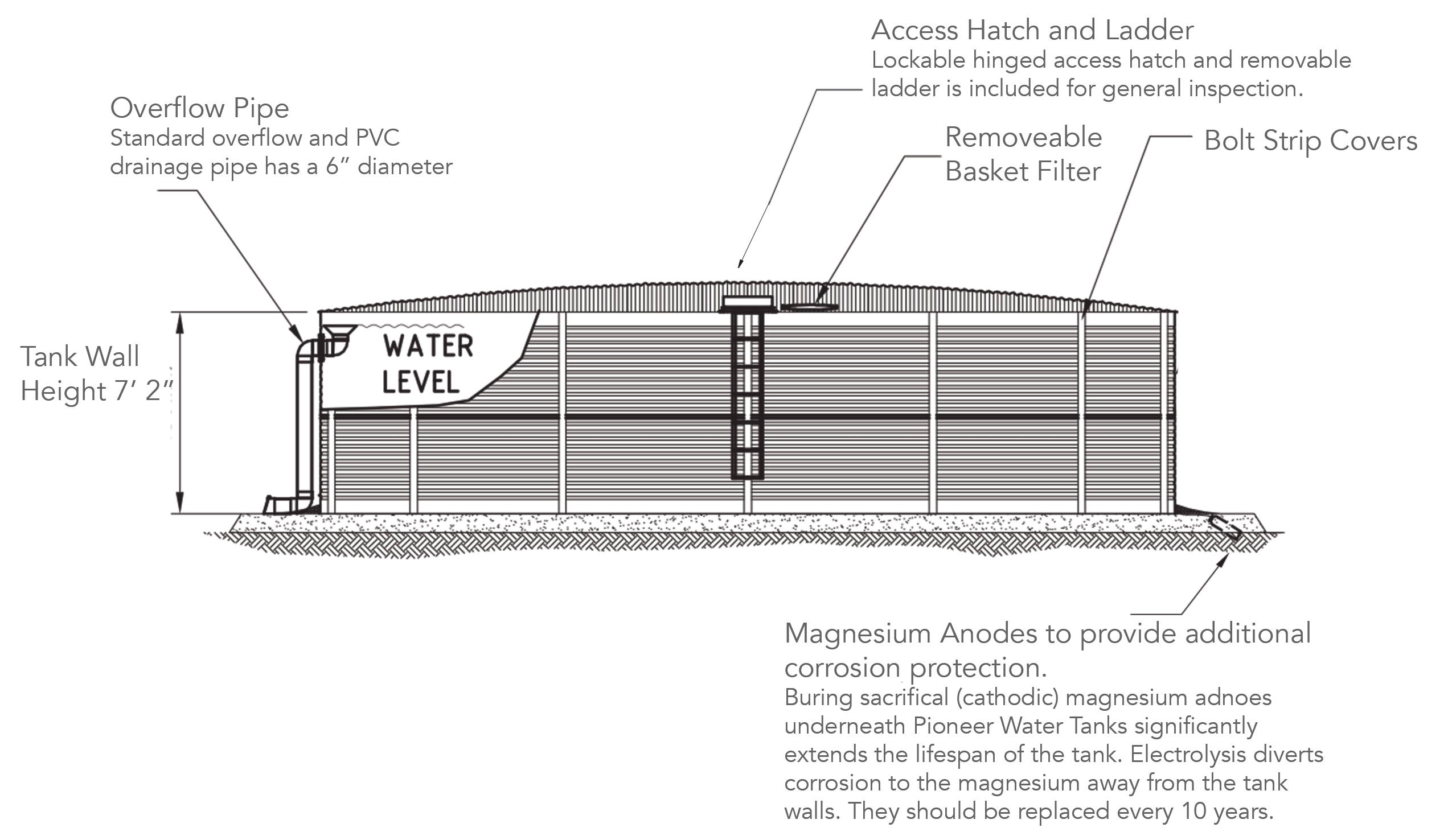

SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$5,120.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: KIT-XLR 01/02
Capacity: 3,249 Gallons (Nominal)
Diameter: 8′ 10″
Height: 7′ 2″
Material: Zincalume® Steel
Liner: AQUALINER® Fresh with Geotextile Underlay
Roof: Trusses, roof sheets, and top hoop included
Access: Lockable roof access hatch and ladder
Overflow: 6″ overflow with screen
Outlet: 2″ outlet with ball valve
Inlet: Stainless steel basket strainer
Additional: Sacrificial anodes and condensation barrier
🌿 Features
• Durable steel construction with antimicrobial liner
• All-in-one tank kit for fast and efficient assembly
• Designed for residential, agricultural, or irrigation use
• Compact size for restricted space installations
• Not intended for permitted or engineered projects
🔧 Applications
• Rural or off-grid water storage
• Irrigation and agricultural feed systems
• Fire backup supply (non-permitted)
• Private rainwater harvesting
🚚 Shipping & Handling
Ships via freight with palletized components
Includes tank body, liner, roof system, ladder, and valves
Shipping weight: ~1,200–1,500lbs
Assembly manual included
