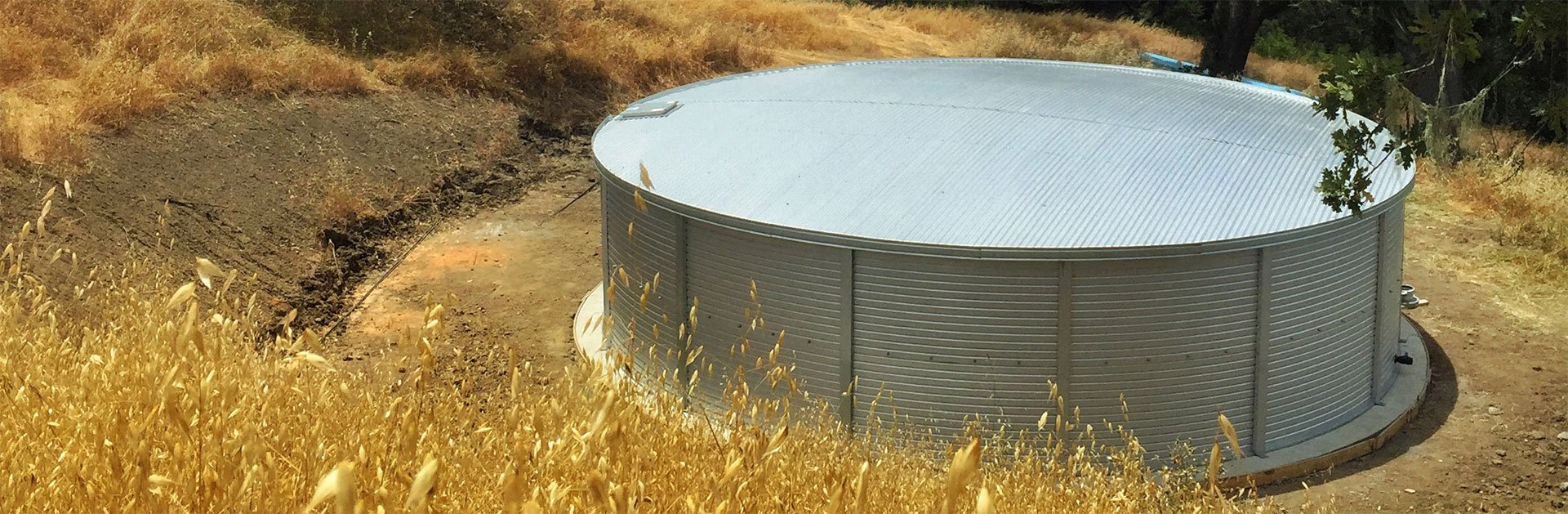

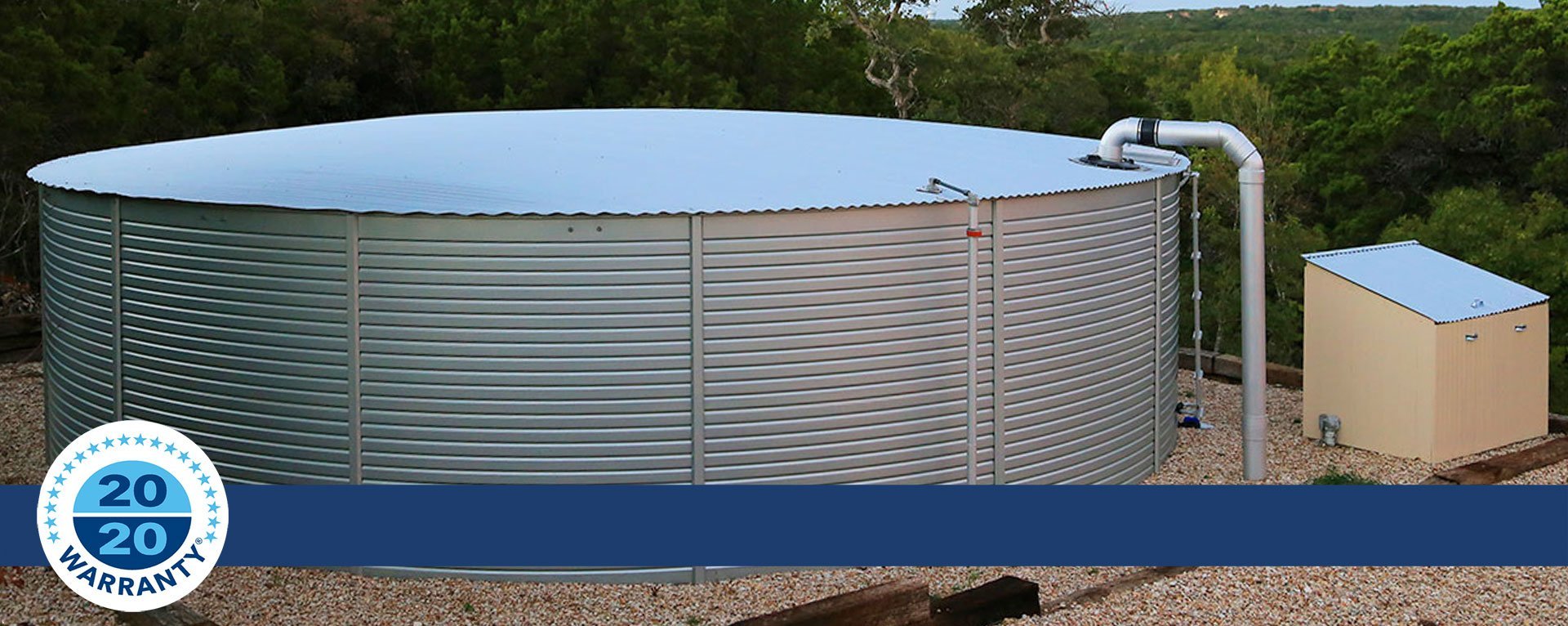

Pioneer Water Tanks KIT-XLE30/02 – 39,000 Gallons
The Pioneer KIT-XLE30/02 Water Storage Tank Kit delivers a massive 39,707-gallon capacity and includes all essential components for high-volume water storage. Built with corrosion-resistant Zincalume® steel and an AQUALINER® Fresh liner, it ensures durability and water safety for a variety of critical applications.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$26,112.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: KIT-XLE30/02
Capacity: 39,707 Gallons
Diameter: 30′ 9″
Height: 7′ 2″
Material: Zincalume® Steel Panels
Liner: AQUALINER® Fresh with Geotex Underlay
Overflow: 6″ overflow with screen
Access: Lockable access hatch and removable ladder
Anodes: Sacrificial anodes included for corrosion protection
Roof: Full roof system included
🌿 Features
• Complete tank kit with all hardware included
• Zincalume® steel construction for long-term durability
• Advanced liner system with antimicrobial protection
• Designed for quick assembly and structural stability
• Suitable for high-capacity residential, agricultural, or fire storage use
🔧 Applications
• Bulk rainwater harvesting
• Agricultural and irrigation systems
• Commercial or industrial process water storage
• Fire protection water storage systems
🚚 Shipping & Handling
Ships via freight with multiple skids
All components boxed and labeled
Shipping weight: ~3,000–3,500 lbs
Includes tank body, liner, roof system, ladder, and accessories
