CorGal WST0605 – 3,000 Gallon Steel Water Tank
🛠️ Product Overview
The WST0605 is a compact-capacity corrugated steel water tank with a uniquely tall and narrow profile, ideal for installations with tight horizontal space but generous vertical clearance. With a 6′ diameter and over 18′ eave height, this 3,000-gallon tank is well-suited for residential fire protection reserves, rainwater harvesting, and utility water supply in vertical stacking environments. Despite its modest capacity, the tank supports a full weight of over 25,000 lbs and is built from heavy-duty galvanized steel.
Product Details
📏 Key Specifications
Model: WST0605
Capacity: 3,000 gallons

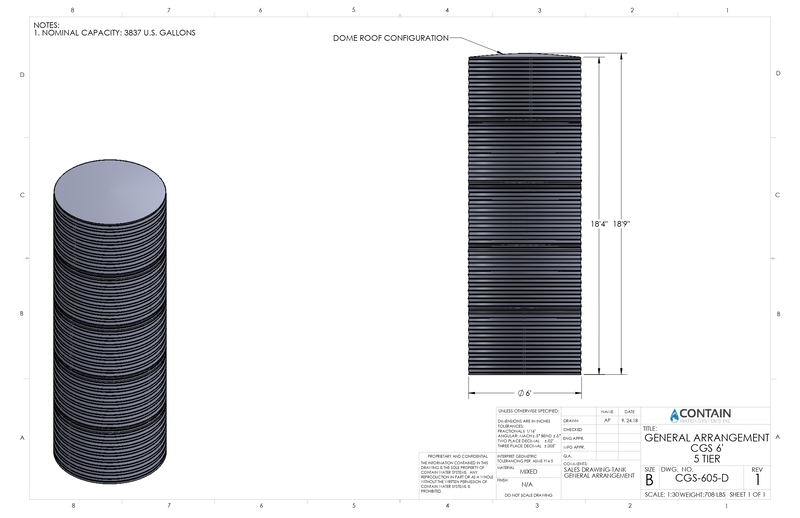

Diameter: 6′ 0″
Eave Height: 18′ 4″
Peak Height: 20′ 1″
Full Load Weight: ~25,100 lbs
Material: Corrugated galvanized steel
Applications: Fire protection (residential), rainwater collection, vertical storage systems, utility water use
Design: Above-ground narrow-tower configuration
🚚 Shipping & Handling
Packaging: Flat-packed steel components
Shipping Method: Standard freight
Lead Time: 4–6 weeks from order
Installation Time: 2–3 days with certified crew
Site Prep: Compacted base or small concrete pad
Tools Required: Forklift or lift-assist for vertical assembly
