CorGal WST3905 – 160,000 Gallon Steel Water Tank
🛠️ Product Overview

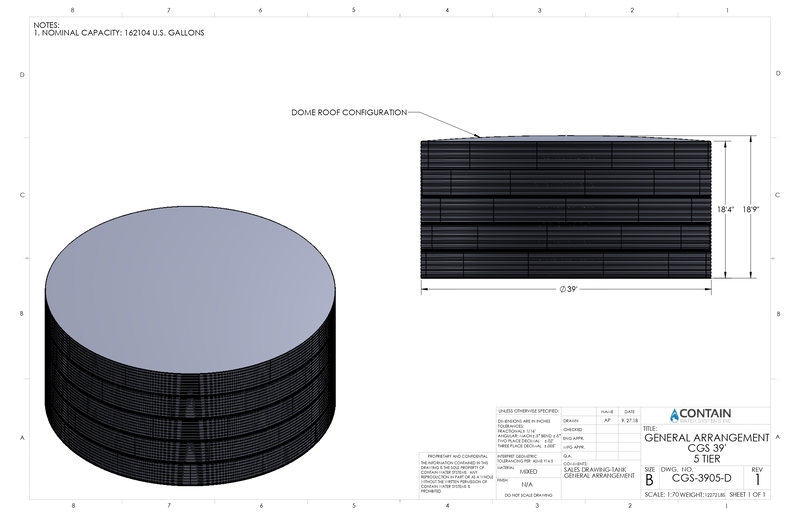

The WST3905 is a high-capacity, above-ground corrugated steel water tank designed for large-scale storage needs. With a 39′ diameter, nearly 18′ eave height, and a peak height of over 29′, this tank holds up to 160,000 gallons and supports over 1.3 million lbs when full. It’s ideal for fire suppression systems, municipal reserves, and stormwater retention, offering durability, modular assembly, and long-term performance.
Product Details
📏 Key Specifications
Model: WST3905
Capacity: 160,000 gallons
Diameter: 39′ 0″
Eave Height: 17′ 11″
Peak Height: 29′ 4″
Full Load Weight: ~1,300,000 lbs
Material: Corrugated galvanized steel panels
Applications:
Fire protection reserves
Municipal water storage
Stormwater or rainwater harvesting
Industrial and agricultural containment
Design: Above-ground with conical dome roof and vertical wall panels
🚚 Shipping & Handling
Packaging: Flat-packed steel components
Shipping Method: Freight
Lead Time: 6–9 weeks standard
Installation Time: 5–8 days with certified crew
Site Prep: Compacted gravel pad or concrete ring beam
Tools Required: Forklift or crane for unloading and setup
