SBS Tank CY15R06 – 136.6K Gal, 150 MPH, NFPA 22
🛠️ Product Overview

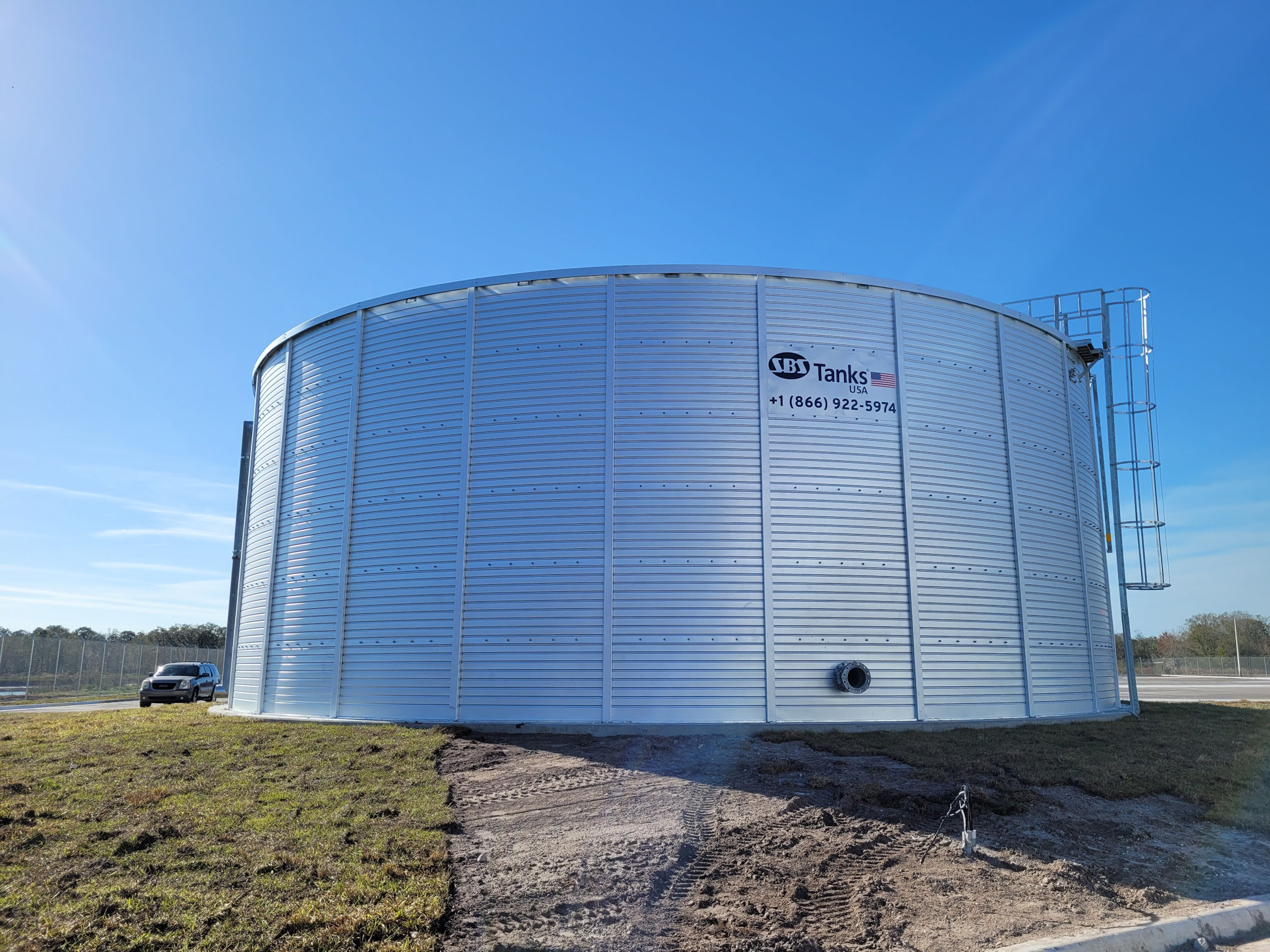

The SBS Tank CY15R06 is a mid-size, high-performance bolted steel water tank designed for extreme wind conditions. Engineered for 150 MPH wind load resistance and full NFPA 22 compliance, this tank provides reliable long-term water storage for fire protection, commercial, and municipal systems. Its modular design ensures fast installation, while the NSF/ANSI 61 liner guarantees potable water safety.
Product Brochure:
Tank Sizing Chart:
Product Details
📏 Key Specifications
Capacity: 136,626 gallons (gross), 121,070 gallons (usable)
Model Number: CY15R06
Diameter: 33′ 7″
Height: 20′ 7″
Wall Panels: Galvalume® steel, G300/G550 grade with AZ150 coating
Roof: Self-supporting corrugated dome roof
Liner: NSF/ANSI 61-certified synthetic liner
Wind Rating: Up to 150 MPH (Cyclonic Rated)
Seismic Rating: Earthquake zone compatible
Tank Color: Mill-finish (silver); optional powder-coated exterior
Bolt Design: M10/M12 hot-dip galvanized high-tensile bolts
Nozzles: 2″–6″ galvanized steel or optional HDPE/stainless steel
Lifespan: 60+ years under normal operating conditions
Warranty: 12-month materials/workmanship + 20-year no-leak conditional warranty
📦 Shipping & Handling
Packaging: Flat-packed steel panels and liner
Shipping Weight: ~10,000–11,000 lbs (estimated)
Shipping Method: Containerized freight
Delivery Time: 10–12 weeks (from receipt of order & deposit)
Installation Time: ~5–6 days with certified crew
Site Prep: Level pad with compacted sand or concrete ring beam
Installation Requirements: Forklift or crane required for unloading
