CorGal WST4204 – 145,600 Gallon Steel Water Tank
🛠️ Product Overview
The WST4204 is a heavy-duty, above-ground corrugated steel water tank engineered for long-term storage in fire protection systems, municipal water reserves, industrial processes, and stormwater management. With a massive 42′ diameter, 14′4″ eave height, and nearly 27′ peak height, this tank offers a total capacity of 145,600 gallons and supports a fully loaded weight of over 1.15 million lbs. Its galvanized steel body ensures corrosion resistance and strength in demanding environments.
Product Details
📏 Key Specifications
Model: WST4204
Capacity: 145,600 gallons
Diameter: 42′ 0″
Eave Height: 14′ 4″
Peak Height: 26′ 8″
Full Load Weight: ~1,150,000 lbs
Material: Corrugated galvanized steel
Applications:
Fire suppression systems
Municipal water storage
Industrial processing
Rainwater or stormwater harvesting

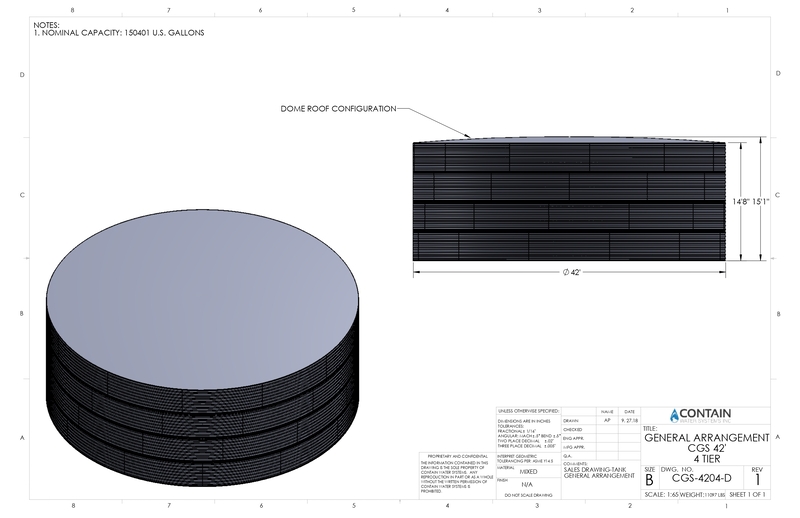

Design: Above-ground dome-roof tank with vertical steel wall panels
🚚 Shipping & Handling
Packaging: Flat-packed steel panels and components
Shipping Method: Freight
Lead Time: 6–9 weeks standard
Installation Time: 5–7 days with certified crew
Site Prep: Compacted pad or reinforced concrete ring beam
Tools Required: Forklift or crane for unloading and assembly
