SteelCore SCT‑5506‑341K Gallon Water Storage Tank

🛠️ Product Overview

🧱 Supplemental Construction & Engineering Details

Built for high-performance and structural durability:

• Structured 10° low J‑rib galvanized roof with 4.5″ overhang

• Estimated usable capacity: 340,655 gallons (based on 30″ seismic freeboard & flange loss)

• Seismic Use Group: III | Risk Category: IV

• Importance Factor: 1.50

• Wind Design: 125 MPH

• Roof Snow Load: 10 psf | Roof Live Load: 25 psf

• Anchoring: Fully stiffened with galvanized threaded rods

• Seismic: Ss = 0.199 | S1 = 0.082

• Foundation: Concrete slab

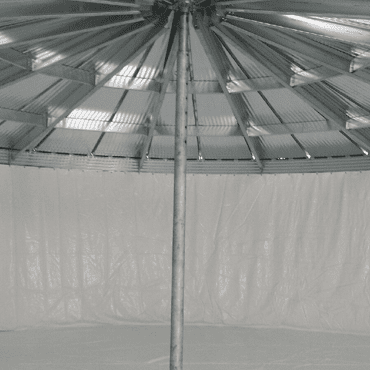

 🧪 Liner System & Internal Components

Includes the EIA‑36 flexible containment system:

• 10‑Year Conditional Warranty

• NSF‑61 Certified Ethylene Interpolymer Alloy Liner

• Factory-welded seams with reinforced rope edge and grommets

• 8 oz. geotextile pre-liner

• Liner hanging hardware

⚙️ Fittings & Appurtenances

• SCT logo on tank ring

• (1) 1″ TXT deck/roof fitting for controls

• (1) 1.5″ 304 SS sidewall FNPT flange (controls)

• (2) 2″ galvanized ANSI 150# nozzles (inlet & drain)

• (1) 4″ Sch. 80 PVC overflow wall flange

• (1) 6″ wall-mounted steel fire outlet with AV plate

• (1) 24″ bolted side shell manway

• (1) OSHA ladder kit – 6 rings, ladder cover, 3′ partial guardrail, self-closing gate

• (1) Reverse read water level indicator – 22′ with SS float and hardware

• (3) Gooseneck roof vents

• (36) Heavy-duty galvanized anchors and bolts

🧾 Engineering & Certification

• Full Structural Design Package (SDP)

• PE-stamped drawings and fitting orientation map

• 20-Year Conditional Structural Warranty

• NFPA 22 Fire Protection Equivalent

  📞 Contact Us for freight quote and lead time
