Contain Water System 2402 – Steel Water Tank
💧 Massive corrugated galvanized steel water tank for municipal, industrial, and fire protection applications
🛠️ Product Overview
The Contain Water Systems 2402 Steel Water Tank delivers an impressive over 250,000 gallons of storage capacity, engineered for the most demanding applications. Constructed from heavy‑duty corrugated galvanized steel panels, this tank is paired with an NSF/ANSI 61 certified potable liner system and designed in compliance with NFPA‑22 and AWWA standards. Its modular bolted design allows for transport to remote sites and efficient on‑site assembly, while the large‑diameter configuration ensures optimal volume in a compact footprint.
📞 Contact us for freight quote and lead time

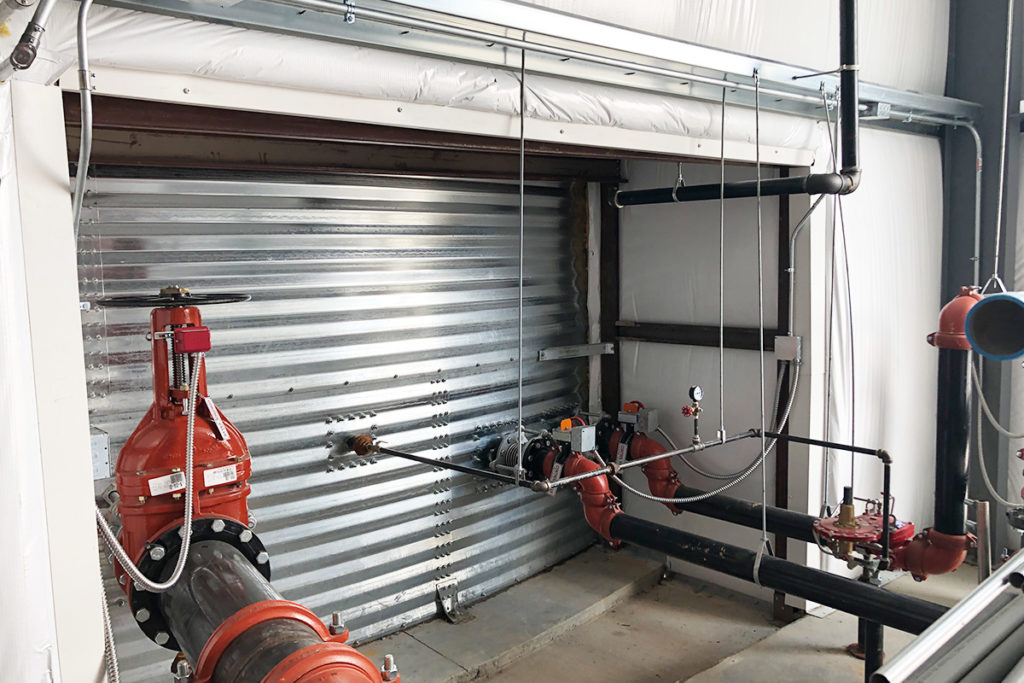

Fire Protection
Warranty
Product Details
📏 Key Specifications
Capacity: ~250,000 gallons (varies with configuration)
Model Number: 2402
Diameter: ~24 ft
Height: ~10 ft (varies with roof design)
Roof Options: 30° V‑rib or flat seam galvanized steel
Material: Corrugated G115 galvanized steel panels
Liner System: NSF/ANSI 61 certified potable PVC liner with geotextile pre‑liner
Certifications: NSF/ANSI 61 potable, NFPA‑22 & AWWA compliant
Warranty: 20‑year prorated structural warranty; 10‑year liner warranty
Applications: Potable water, fire suppression, municipal reserves, irrigation, stormwater, and rainwater harvesting
🚚 Shipping & Handling
Packaging: Flat‑packed steel panels, roof system, liner, and hardware
Shipping Method: Full truckload or containerized freight; crane or forklift required for unloading
Shipping Weight: Approx. 18,000–20,000 lbs
Delivery Time: Typically 10–14 weeks

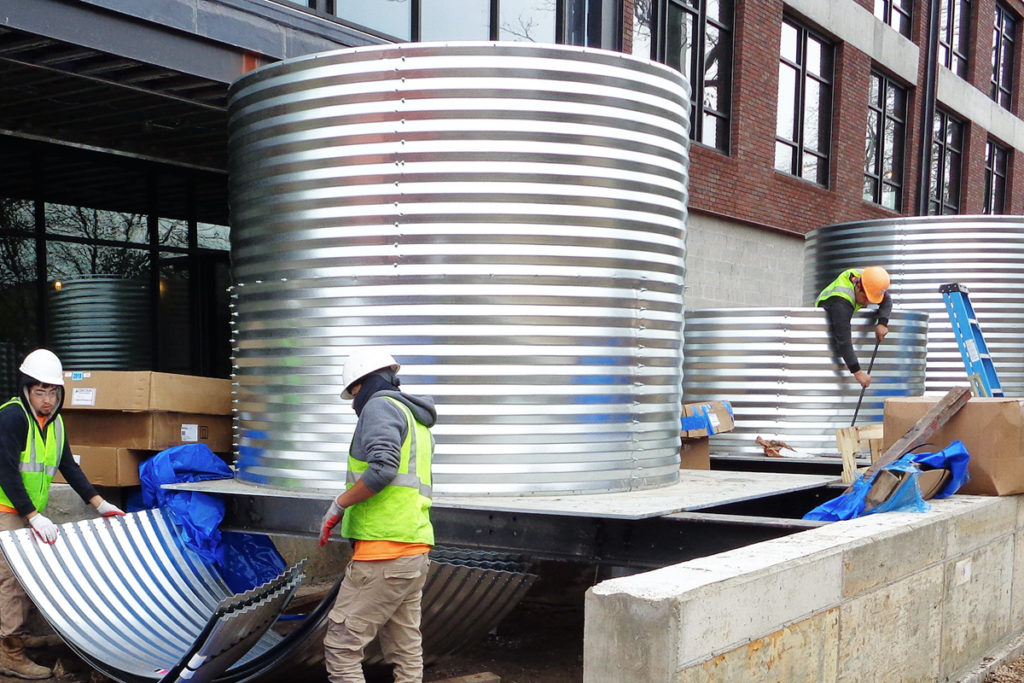

Installation: On‑site assembly by certified crew; requires engineered concrete foundation or reinforced ring beam
