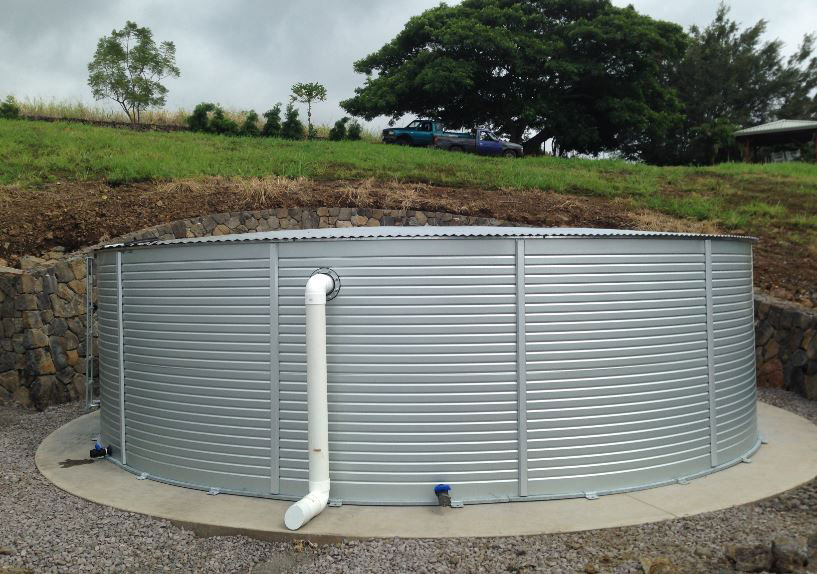

Pioneer Water Tanks XLE13/4 – 32,107 Gallons
The Pioneer XLE13/4 Water Storage Tank Kit delivers a dependable 32,107-gallon capacity, engineered for resilience and longevity. Built with Zincalume® steel and lined with the AQUALINER® Fresh antimicrobial system, this full kit includes everything needed for reliable large-scale water storage in agricultural, residential, or commercial settings.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.
SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.

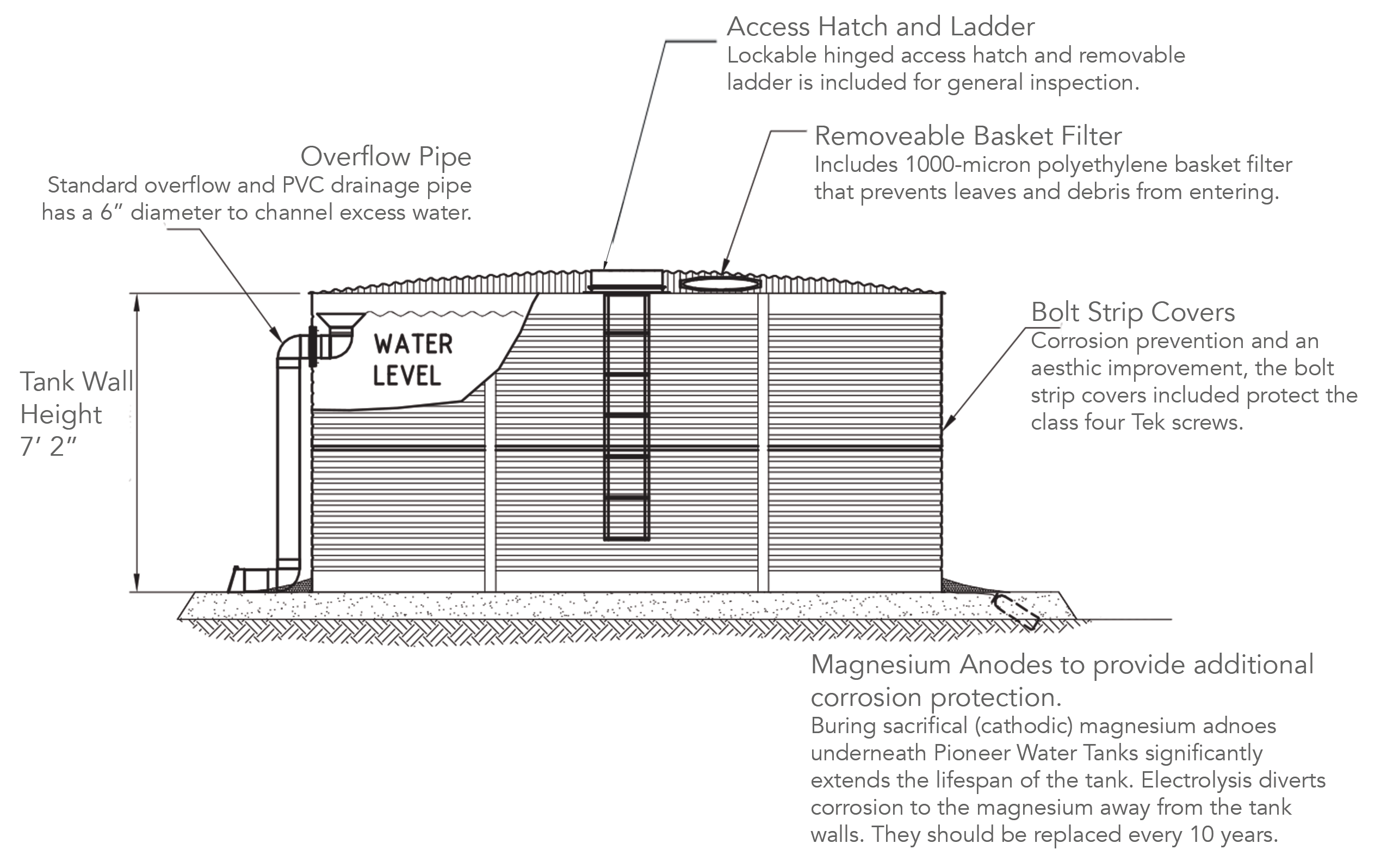

6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$42,160.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: XLE13/4
Capacity: 32,107 Gallons
Diameter: 19′ 9″
Height: 14′ 0″
Material: Zincalume® Steel Panels
Liner: AQUALINER® Fresh with Geotex Underlay
Overflow: 6″ overflow pipe
Access: Lockable access hatch and removable ladder
Extras: Sacrificial anodes and complete roof system included
🌿 Features
• Complete kit with tank body, liner, roof, ladder, and fittings
• Antimicrobial AQUALINER® Fresh ensures safe, clean water
• Tall wall height design for vertical space efficiency
• Zincalume® steel construction resists corrosion and wear
• Engineered for rapid installation and long service life
🔧 Applications
• Rainwater harvesting systems
• Agricultural and irrigation supply
• Fire protection storage (with additional fittings)
• Potable water reserve for residential or commercial use
🚚 Shipping & Handling
Ships via freight on multiple skids
Components labeled and packed for easy assembly
Shipping weight: ~3,000–4,000 lbs
Includes installation guide and all required hardware
