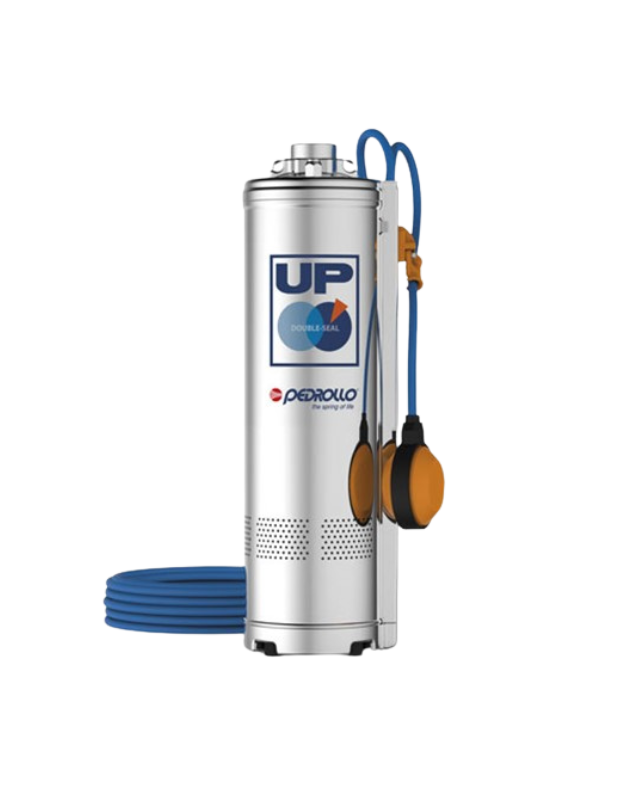

Pedrollo UP Cistern Pump UPM 2/2 240V/1Ø W/FLOAT SWITCH
Horizontal Cistern Pump, 1.0 HP, 230V, 1Ø, 5.8 Amps, 31 lb. dry weight. 18 GPM @ 50 PSIG 60 PSID @ shutoff. Operates to 3" minimum submergence.1¼" FPT Connection. Stocked in Doraville warehouse. (HF or 1.5 STD?)
A series of multi-impeller submersible pumps engineered for enhanced reliability, thanks to innovative patented solutions that prevent stalling even after prolonged periods of inactivity. Highly efficient and reliable, these pumps are ideal for various applications, including water distribution in domestic, civil, and agricultural settings, particularly for water distribution in conjunction with pressure tanks, for irrigation, pressure boosting, and more.
Non-returnable
$500.13
Choose Quantity :
Product Information
Product Details
APPLICATION LIMITS:
• Liquid temperature up to +40 °C
• Maximum sand content 150 g/m³
• Maximum operating depth below water level up to 20 m (with an appropriately sized power cable)

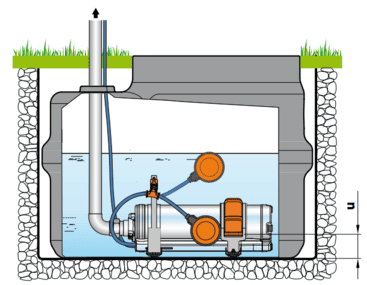

• Vertical and horizontal operation
INCLUDES:
※ Float switch (exclusive to single-phase models)
※ Power cable length 10 m 20 m or 30 m power cables
※ Different voltage requirements 60 Hz frequency
※ Support kit for horizontal operation
MATERIALS AND COMPONENTS:
1 Outer sleeve AISI 304 stainless steel with ISO 228/1 threaded delivery port 2
Internal motor jacket Stainless steel AISI 304 3
Impellers and diffusers Noryl™ 4
Diaphragms Stainless steel AISI 304 5
Motor shaft Stainless steel AISI 431 6
**Double mechanical seal with interposed oil chamber
