Pioneer Water Tanks KIT-XL10R6 – 37,710 Gallons
The Pioneer KIT-XL10R6 is a high-capacity steel water storage tank designed for durability and long-term use. With a 37,710-gallon nominal capacity and 35,890 net usable gallons, this base tank kit is constructed from corrosion-resistant Zincalume® steel, making it ideal for agricultural, industrial, and remote water storage applications.
STANDARD INCLUSIONS
AQUALINER® FRESH
The first antimicrobial tank liner in the world, our exclusive five-layer AQUALINER® Fresh keeps your water fresher for longer with embedded Sanitized® Silver technology. With a life expectancy of 65 years, the AQUALINER® Fresh is designed to fit the Pioneer Water Tank to prevent contamination.
GEOTEXTILE UNDERLAY
Our geotextile underlay is the ideal way to protect your AQUALINER® Fresh from being compromised by sharp objects that may be caught inside your water tank.
SUPER SEAL
Reduce the number of contaminants to protect your precious water supply with Pioneer Water Tanks’ high-density foam sealer.

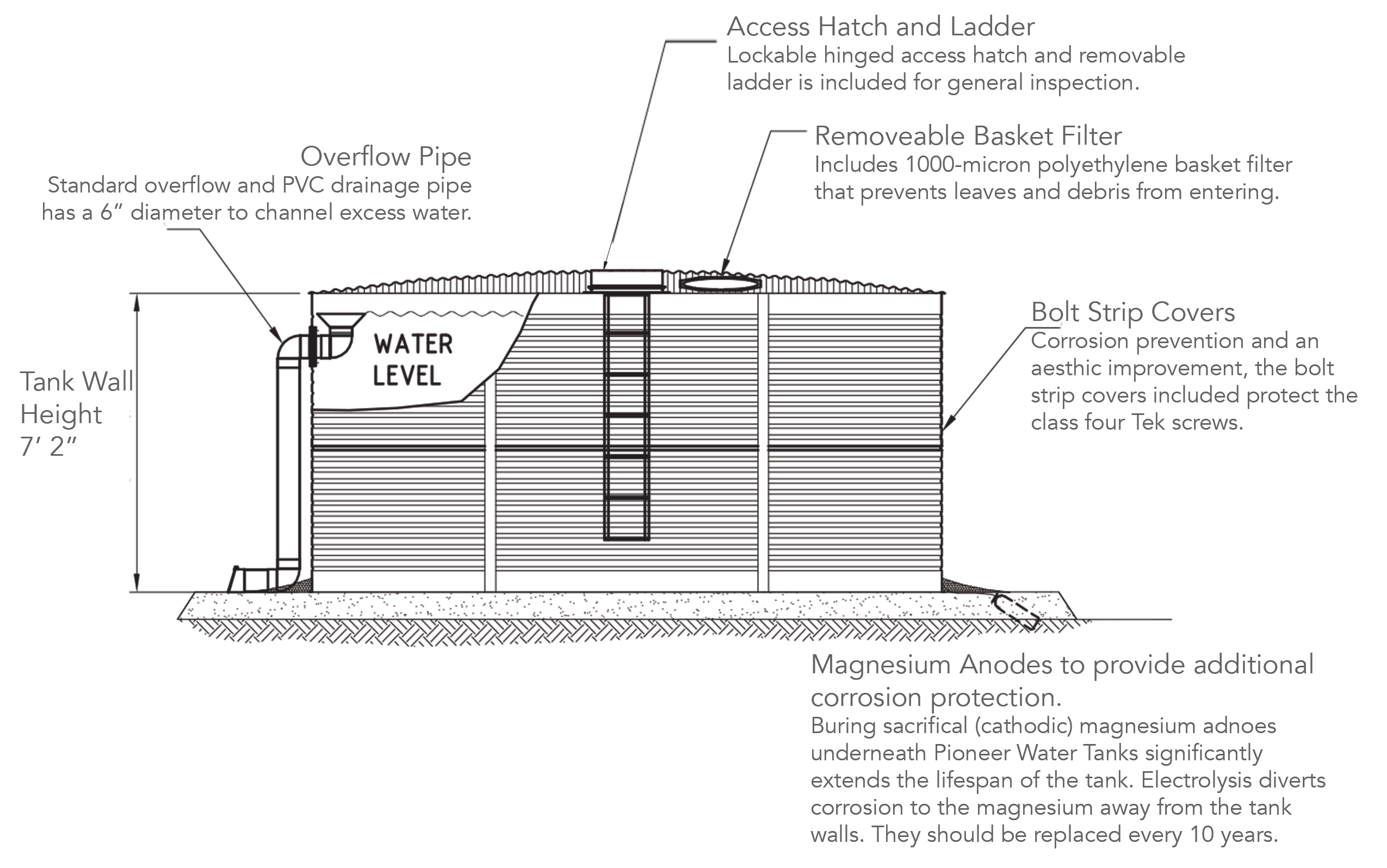

SACRIFICIAL ANODES
Our sacrificial magnesium anodes significantly extend the life of your water tank by protecting the tank from corrosion. Made from magnesium, the anodes erode in place of the water tank, thereby protecting the steel and allowing the tank to last longer than other systems. Pioneer Water Tanks recommend your anodes be replaced every 10 years so you can enjoy the benefits of your tank for life.
6-INCH DIAMETER OVERFLOW
Pioneer Water Tanks provides a 6” diameter overflow downpipe, the largest overflow system on the market. The overflow size moves excess water away from the tank quickly to effectively reduce pressure on your tank and avoid costly damage to your tank components.
$69,230.00
Choose Quantity :
Product Information
Product Details
📄 Key Specifications
Model: KIT-XL10R6
Nominal Capacity: 37,710 Gallons
Net Usable Capacity: 35,890 Gallons
Diameter: 17′ 7″
Straight Wall Height: 20′ 10″
Material: Zincalume® Steel Panels
Coating: Standard Zincalume finish
Liner: Not specified (liner package optional or varies by configuration)
Roof: Not included in base kit (optional or engineered per project)
Outlet & Overflow: Customizable based on project requirements
Access: Available as add-ons (ladder, hatch, inlet screen)
🌿 Features
• Massive volume for high-demand applications
• Modular tank kit ready for engineered installations
• Built with Zincalume® steel for superior corrosion resistance
• Ideal for integration with liner and roof systems (sold separately or customized)
• Suitable for professional or municipal setups requiring certified tank components
🔧 Applications
• Agricultural irrigation and fertilizer mix tanks
• Commercial and industrial water storage
• Fire reserve supply (with appropriate add-ons)
• Remote infrastructure and utilities support
🚚 Shipping & Handling
Ships via freight with multiple pallets
Installation requires on-site assembly by qualified crews
Shipping weight: Estimated ~3,500–4,000 lbs
Assembly guide and component inventory included
