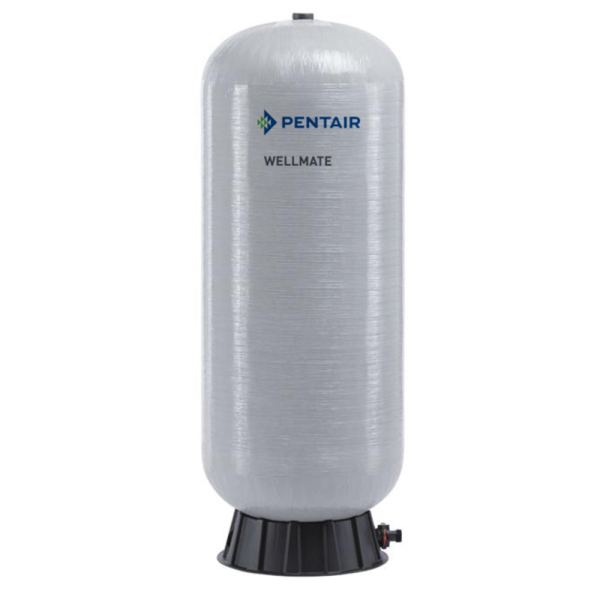

Wellmate WM-25 / WM0330QC Fiberglass Tank (87gallon)
The WellMate WM-25 / WM0330QC is an 86.7-gallon composite pressure tank designed for residential, agricultural, and light commercial water systems. Its corrosion-resistant fiberglass construction and Quick Connect (QC) bottom plumbing ensure durability, ease of installation, and maintenance.
$1,125.00
Choose Quantity :
Product Information
Product Details
🔍 Key Specifications:
- Model: WM-25 / WM0330QC
- Capacity: 86.7 gallons (328 liters)
- Maximum Operating Pressure: 125 psi (8.6 bar)
- Drawdown (at 30/50 psi setting): 26.8 gallons (101.5 liters)
- Diameter: 24 inches (61 cm)
- Height: 55.25 inches (140 cm)
- Inlet/Outlet Connection: 1¼" male NPT Quick Connect (bottom entry)

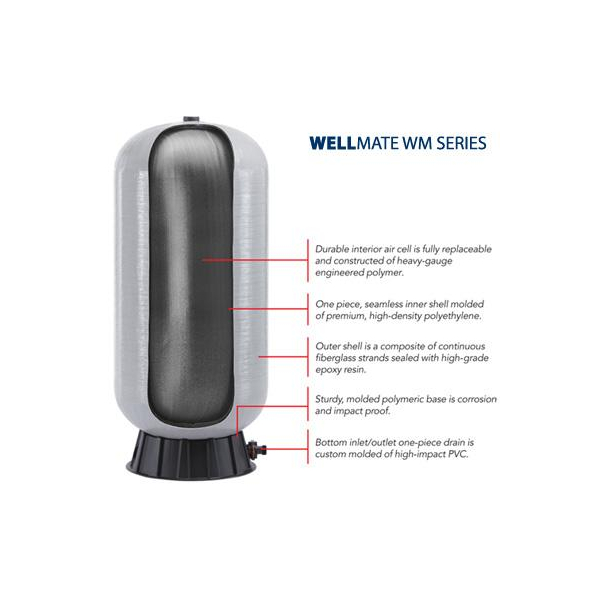

- Material: Fiberglass composite shell with seamless polyethylene liner
- Air Cell: Replaceable heavy-duty butyl diaphragm
- Weight: Approximately 77.2 lbs (35.0 kg)
- Certifications: NSF/ANSI 61 & 372 certified
🛠️ Standard Inclusions:
- Fiberglass pressure tank
- Replaceable air cell
- Quick Connect plumbing fitting
- Installation guide
🌿 Applications Suitable for:
- Residential water systems
- Agricultural irrigation
- Light commercial installations
- Pressure boosting applications
📄 Certifications & Compliance:
- NSF/ANSI Standard 61 & 372 certified
- Manufactured in ISO 9001 certified facilities
🚚 Shipping & Handling:
- Shipping Dimensions: 24" x 24" x 55.25"
- Shipping Weight: Approximately 77.2 lbs (35.0 kg)
- Packaging: Securely boxed with protective materials
- Delivery: Standard ground shipping
